PC Series Third Piece Extension, 47" W × 49" L, Maintains Capacity
The PC Series Third Piece Extension is a removable extension section designed for compatible WM System PC Series high-capacity loading ramps. Measuring 47" wide × 49" long, this third section adds additional ramp length while maintaining the rated capacity of the compatible PC Series ramp system.
The extension is designed to provide additional reach for vehicle loading applications where extra ramp length is needed. It can be removed when not required and stored inside the vehicle.
Key Features
-
47" wide × 49" long
-
Removable third section
-
Solid surface
-
High-capacity PC Series design
-
Maintains the compatible ramp's rated capacity
-
Designed to work with PC Series ramps
-
110 lbs. unit weight
-
Helps provide additional ramp length for loading applications
-
Stores inside the vehicle when not in use
PC Series Compatibility
The 81605 extension is designed to be compatible with any PC Series ramp. It functions as a removable third section that extends the overall ramp length when additional reach is needed.
The PC Series includes high-capacity ramps available in different lengths and configurations. Adding the third-piece extension can provide additional length while maintaining the capacity rating of the compatible ramp system.
Compatible PC Series Ramps
The extension is designed for use with PC Series ramps such as:
-
PC Series 98" ramps
-
PC Series 108" ramps
-
PC Series 128" ramps
The extension is not intended to function as a standalone ramp and should be used only with compatible PC Series equipment.
Solid Surface Construction
The third-piece extension features a solid aluminum surface designed to provide a continuous loading surface when attached to a compatible PC Series ramp. The 47-inch width matches the standard PC Series ramp width, creating a consistent loading platform across the extended ramp system.
Maintains Ramp Capacity
The 81605 extension maintains the capacity of the compatible PC Series ramp system, with National Fleet listing the extension for the PC Series' 3,300 lbs. high-capacity configuration. The capacity of the complete ramp system should always be determined by the specific compatible ramp and manufacturer's specifications.
Do not use the extension by itself or exceed the rated capacity of the complete ramp system.

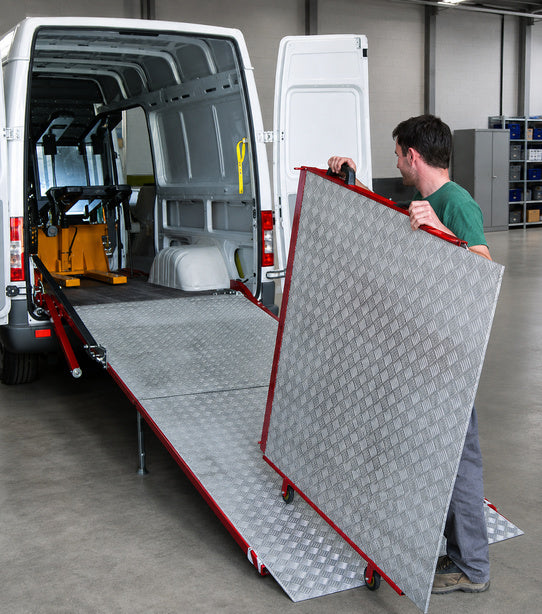

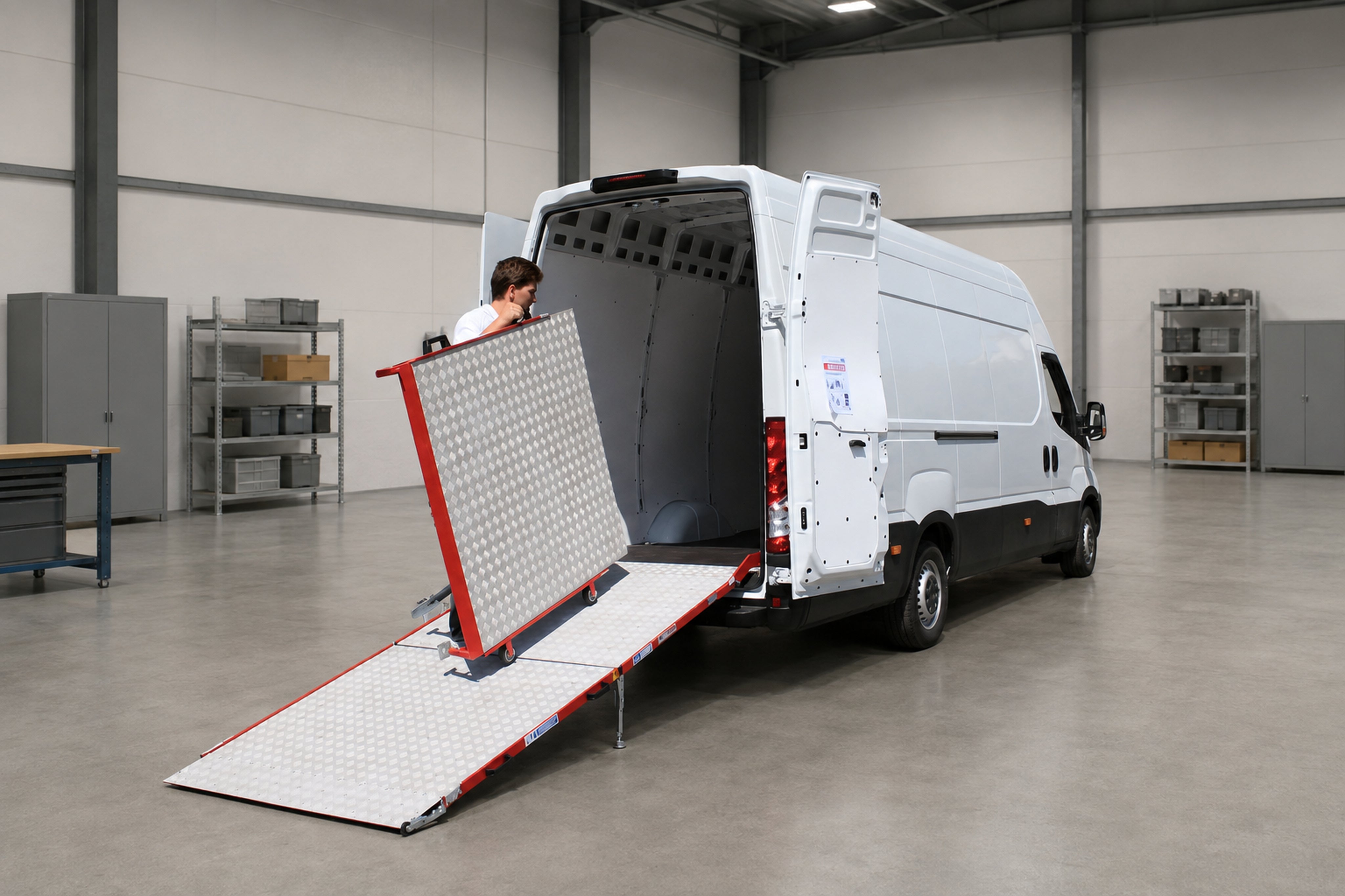

Storage & Removal
The third section is designed to be removable, allowing operators to use the additional ramp length only when needed. When the extension is not required, it can be stored inside the vehicle.
This removable design provides flexibility for businesses that may need additional ramp length for certain equipment or loading conditions but do not require the extension for every job.
Vehicle Applications
National Fleet's PC Series application guides list the 81605 extension for compatible configurations including:
-
Ford Transit
-
Ram ProMaster
-
Mercedes-Benz Sprinter
-
Nissan NV
Vehicle compatibility depends on the specific PC Series ramp and vehicle configuration. Always verify the complete ramp system and vehicle application before installation or use.
Product Specifications
| Specification | Details |
|---|---|
| Brand | National Fleet |
| Product Series | PC Series |
| Part # / Manufacturer # | 81605 |
| Product Type | Third Piece Ramp Extension |
| Width | 47" |
| Length | 49" |
| Surface | Solid |
| Configuration | Removable 3rd Section |
| Unit Weight | 110 lbs. |
| Capacity | 3,300 lbs. PC Series capacity |
| Compatibility | PC Series ramps |
National Fleet identifies 81605 as a PC Series ramp extension measuring 47" × 49", with a 110-lb. unit weight and compatibility with PC Series ramps.

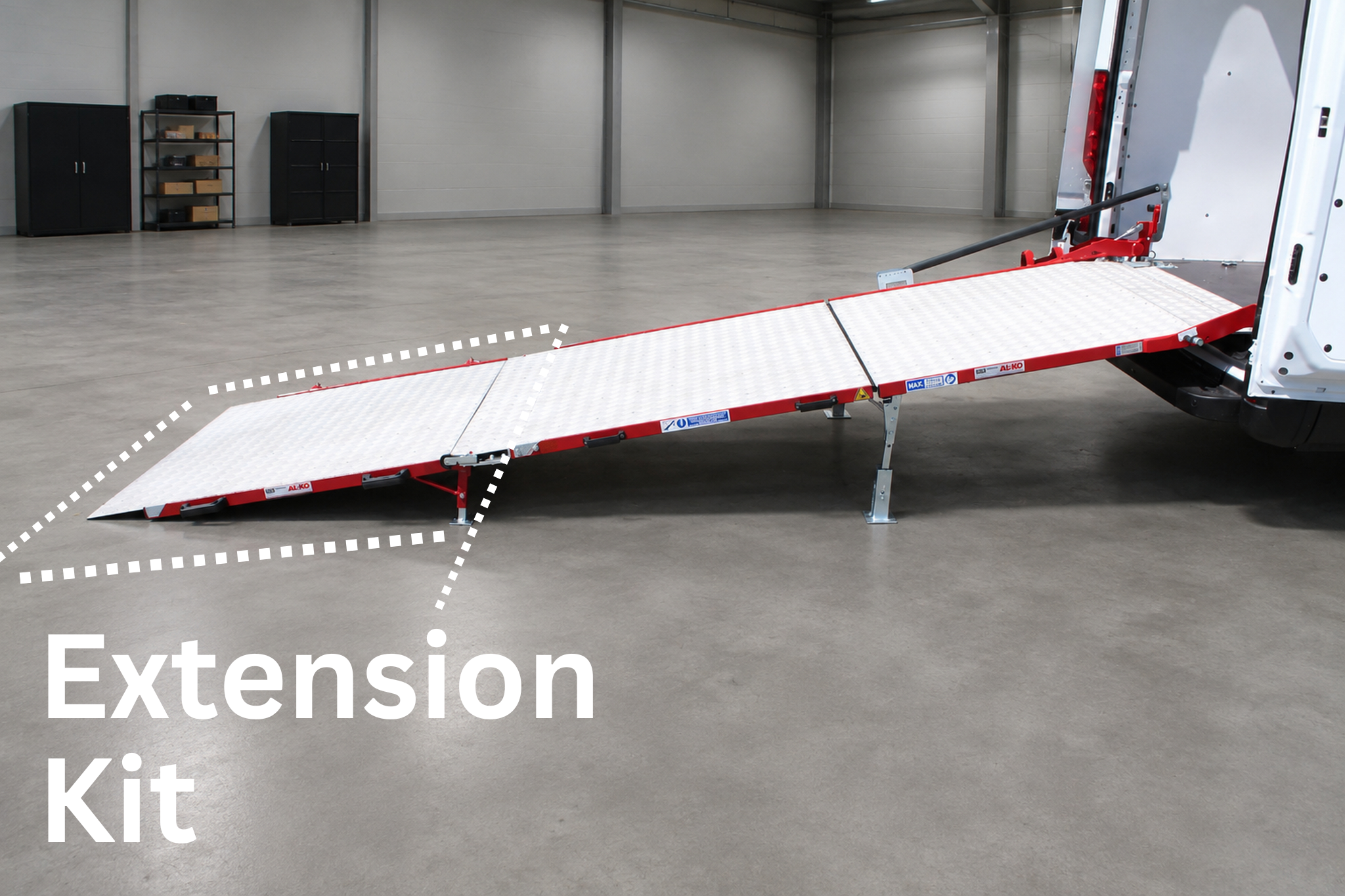

Additional Length for PC Series Ramps
The PC Series Third Piece Extension provides a practical way to increase the usable length of a compatible high-capacity loading ramp without replacing the existing ramp. Its removable design allows operators to add the additional section when required and store it inside the vehicle when it is not needed.
For businesses transporting floor-care equipment, carts, machinery, tools, and other heavy commercial equipment, the additional ramp length can provide greater flexibility when loading and unloading from compatible vehicles.
Important: The 81605 is an extension section and not a standalone ramp. Use it only with a compatible PC Series ramp and follow all manufacturer installation, operating, and load-capacity requirements.
