Light Plus Series Ramp, 47" × 126", 1,500 lbs. Capacity, Solid Deck, Left-Hand Swivel
Product Overview
The Light Plus Series Ramp is a commercial vehicle loading ramp designed for loading and unloading equipment, carts, tools, and other cargo from compatible commercial vans. This 47" × 126" ramp features a 1,500 lbs. load capacity, solid deck, and left-hand swivel design for a stable and convenient loading solution.
The ramp is offered as one product with vehicle-specific configurations for the Ford Transit, Ram ProMaster, and Mercedes-Benz Sprinter.
Key Features
-
47" × 126" ramp dimensions
-
1,500 lbs. load capacity
-
Solid deck
-
Left-hand swivel
-
Two-section ramp design
-
Spring-assisted operation
-
Wheels at the end of the ramp
-
Designed for compatible commercial cargo vans
-
Available for Ford Transit, Ram ProMaster, and Mercedes-Benz Sprinter
Vehicle Options
The Light Plus Series ramp is offered as one product with vehicle-specific configurations for three popular commercial cargo van platforms:
| Variant Vehicle | Configuration |
|---|---|
| Ford Transit | Light Plus Series Ramp, 47" × 126", 1,500 lbs. capacity, solid deck, left-hand swivel |
| Ram ProMaster | Light Plus Series Ramp, 47" × 126", 1,500 lbs. capacity, solid deck, left-hand swivel |
| Mercedes-Benz Sprinter | Light Plus Series Ramp, 47" × 126", 1,500 lbs. capacity, solid deck, left-hand swivel |
Solid Deck Construction
The solid deck provides a continuous loading surface for moving equipment, carts, tools, and other cargo. The 47-inch width provides a broad loading surface, while the 126-inch length provides a gradual approach for loading equipment into compatible commercial vans.

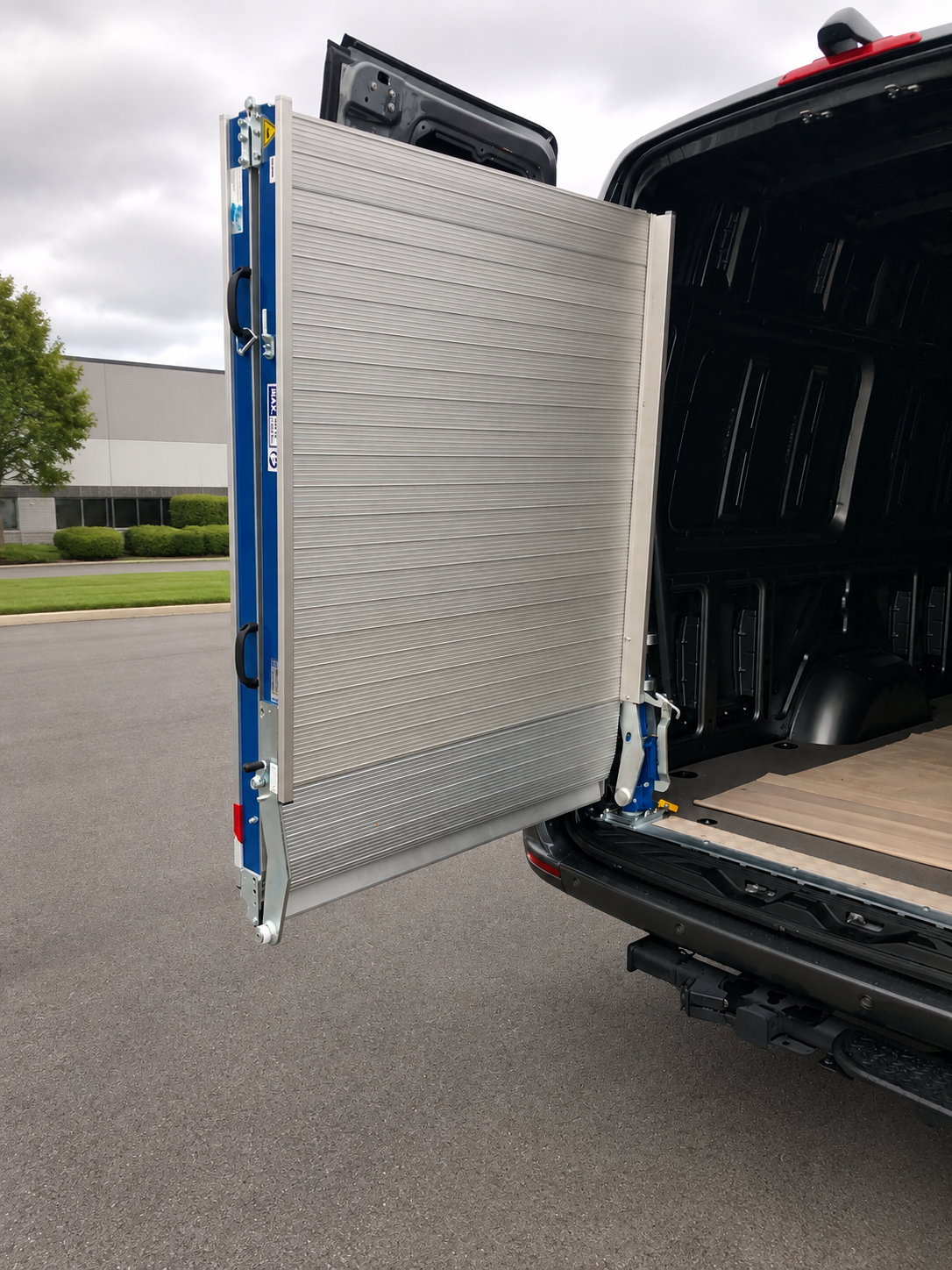

Left-Hand Swivel Design
The left-hand swivel allows the ramp to pivot toward the driver's side of the vehicle. This provides convenient access to the cargo area when the full ramp does not need to be deployed.
The spring-assisted design helps make deployment and storage easier, while the wheels at the end of the ramp assist with positioning and handling.
Commercial Applications
The Light Plus Series Ramp is designed for businesses and professionals that regularly transport equipment and cargo, including:
-
Commercial cleaning operations
-
Contractors and service technicians
-
Equipment service companies
-
Delivery and installation businesses
-
Maintenance professionals
-
Fleet operators
The 1,500 lbs. load capacity provides support for a range of commercial equipment and cargo when operated within the manufacturer's specified load limits.
Product Specifications
| Specification | Details |
|---|---|
| Series | Light Plus |
| Width | 47" |
| Length | 126" |
| Load Capacity | 1,500 lbs. |
| Deck Type | Solid |
| Swivel Direction | Left-Hand |
| Configuration | Two Section |
| Operation | Spring Assisted |
| Vehicle Options | Ford Transit, Ram ProMaster, Mercedes-Benz Sprinter |
| Part # / Manufacturer # | Vehicle-specific |
Vehicle Fitment
This Light Plus Series ramp is available in vehicle-specific configurations for:
-
Ford Transit — 9ALPC279 / 75000ND
-
Ram ProMaster — 9ALPC279 / 75200ND
-
Mercedes-Benz Sprinter — 9ALPC279 / 75500ND
Vehicle fitment can depend on the specific vehicle configuration. Verify the vehicle type, model, and installation requirements before ordering.
Commercial Vehicle Loading Solution
The Light Plus Series Ramp provides a practical solution for businesses that regularly load and unload equipment from commercial cargo vans. With its 1,500 lbs. capacity, solid deck, 47" × 126" dimensions, and left-hand swivel, the ramp is designed for demanding commercial loading applications.
Choose the appropriate Vehicle Type when ordering to match your Ford Transit, Ram ProMaster, or Mercedes-Benz Sprinter.
Important: Always follow the manufacturer's installation, operating, and load-capacity instructions. Do not exceed the rated 1,500 lbs. capacity.
