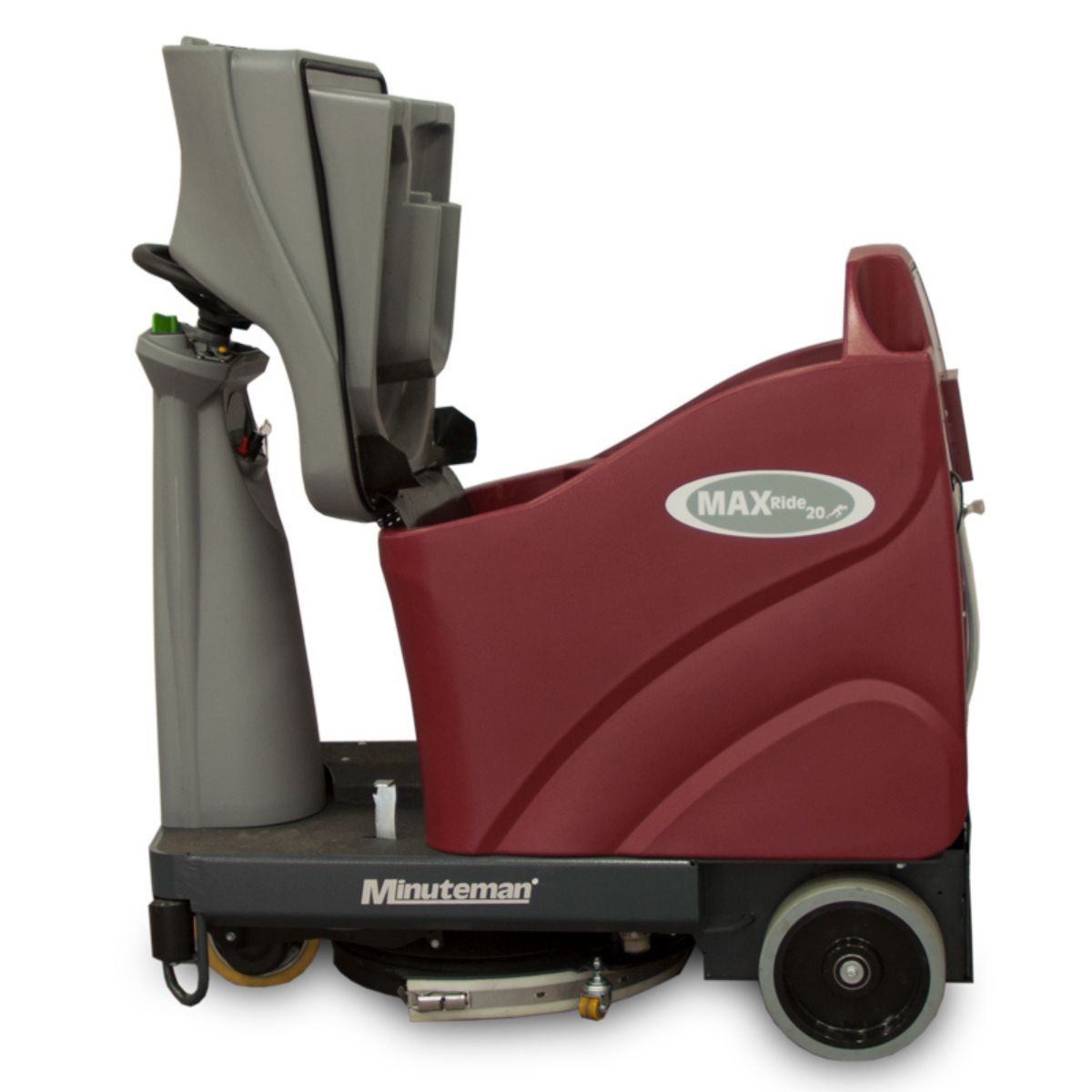

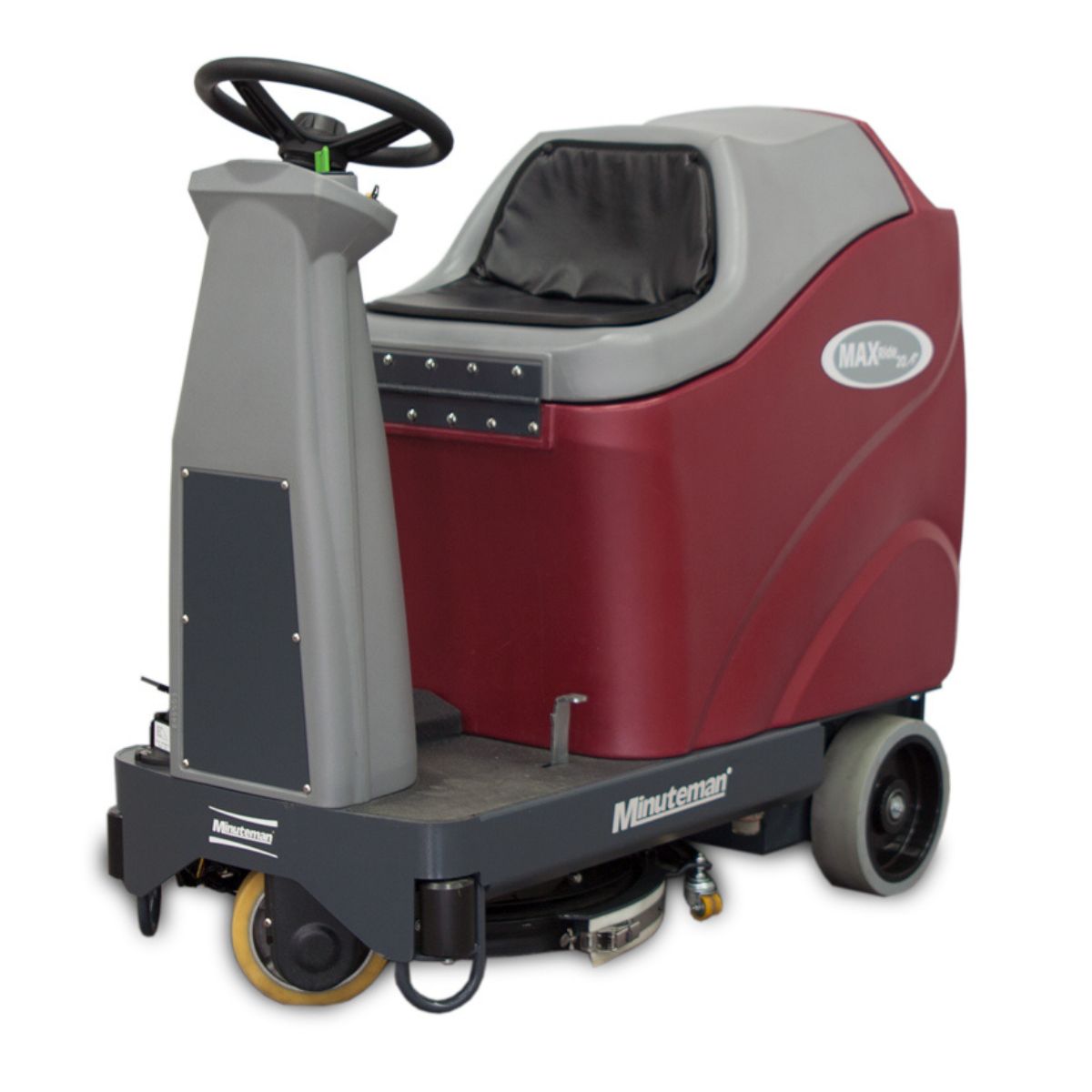

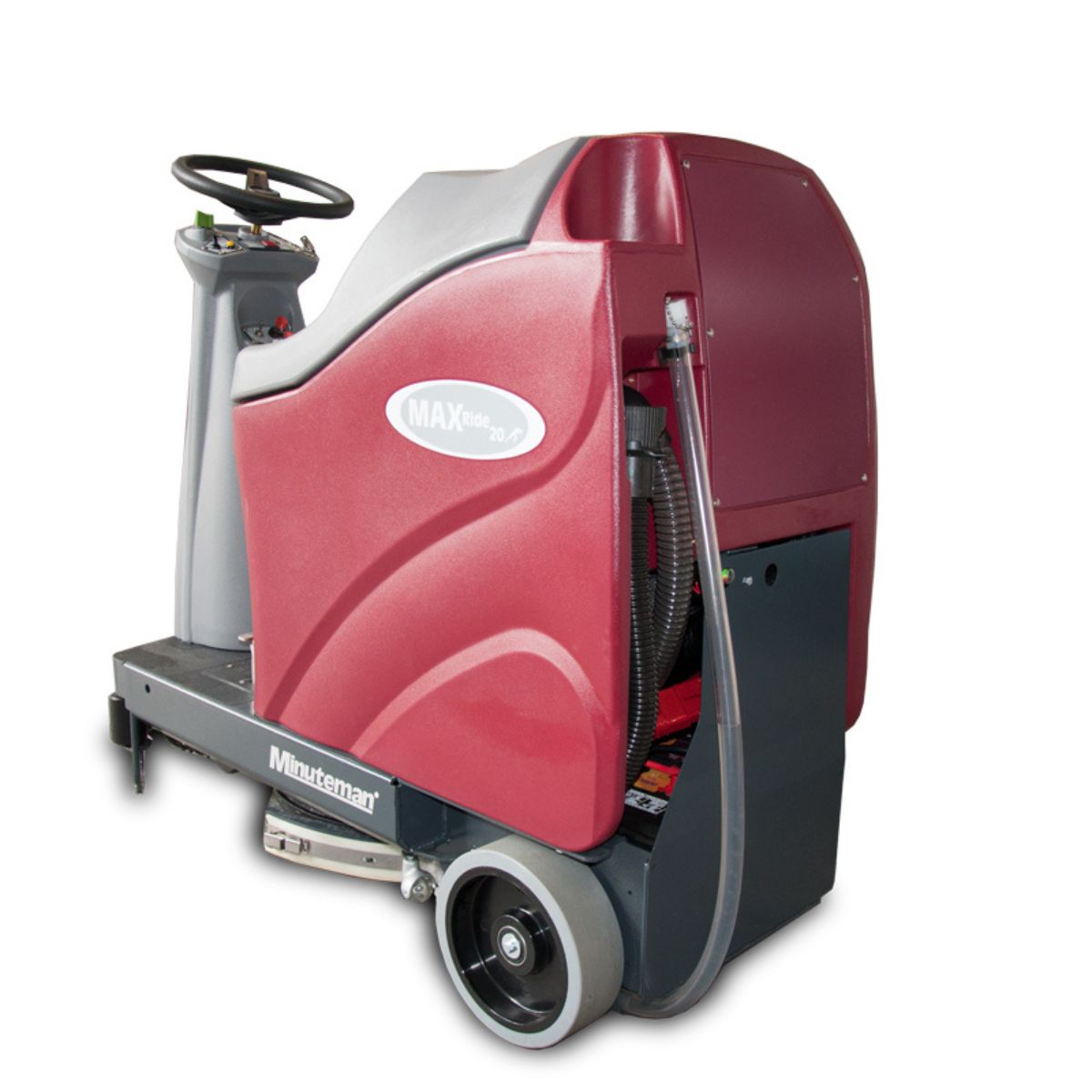

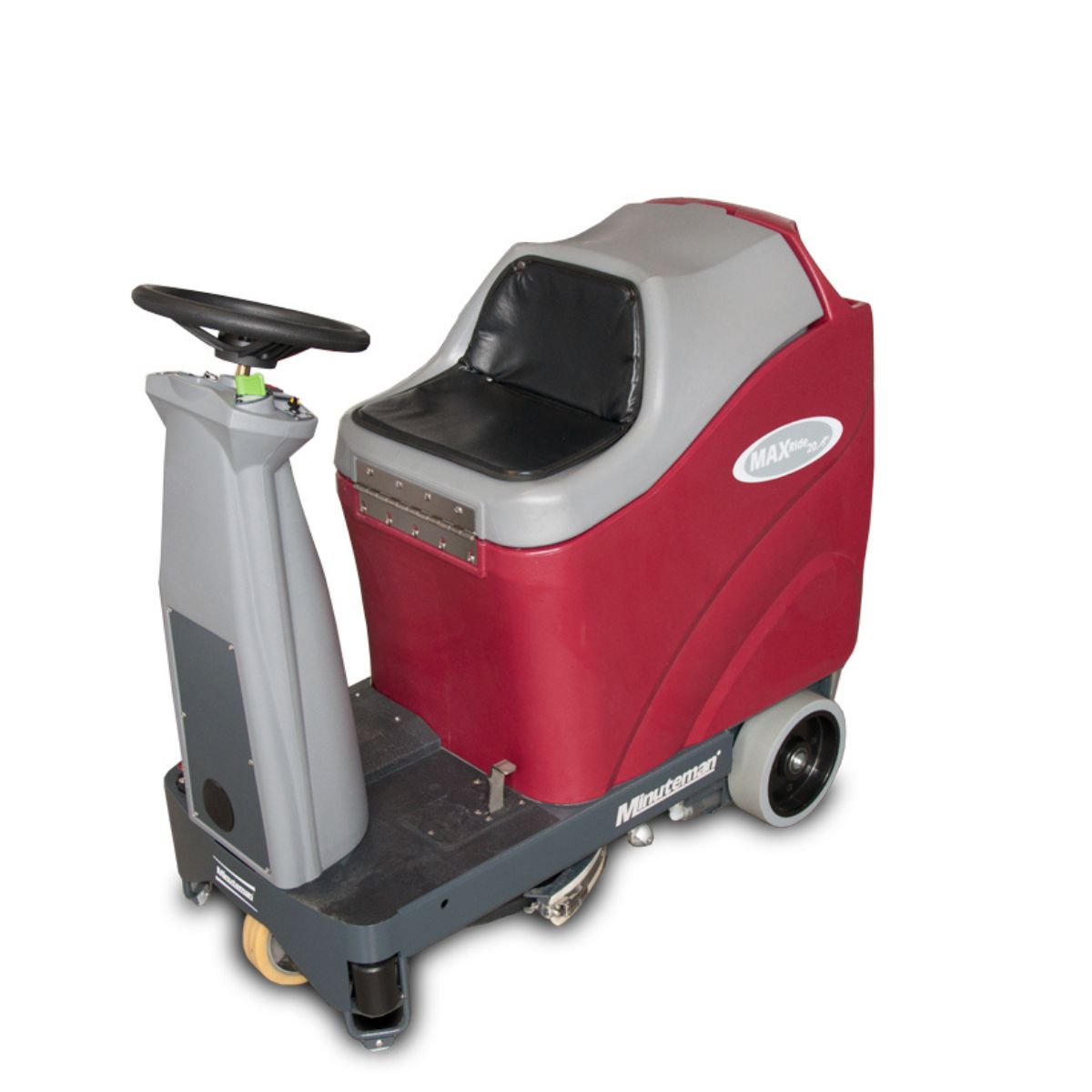

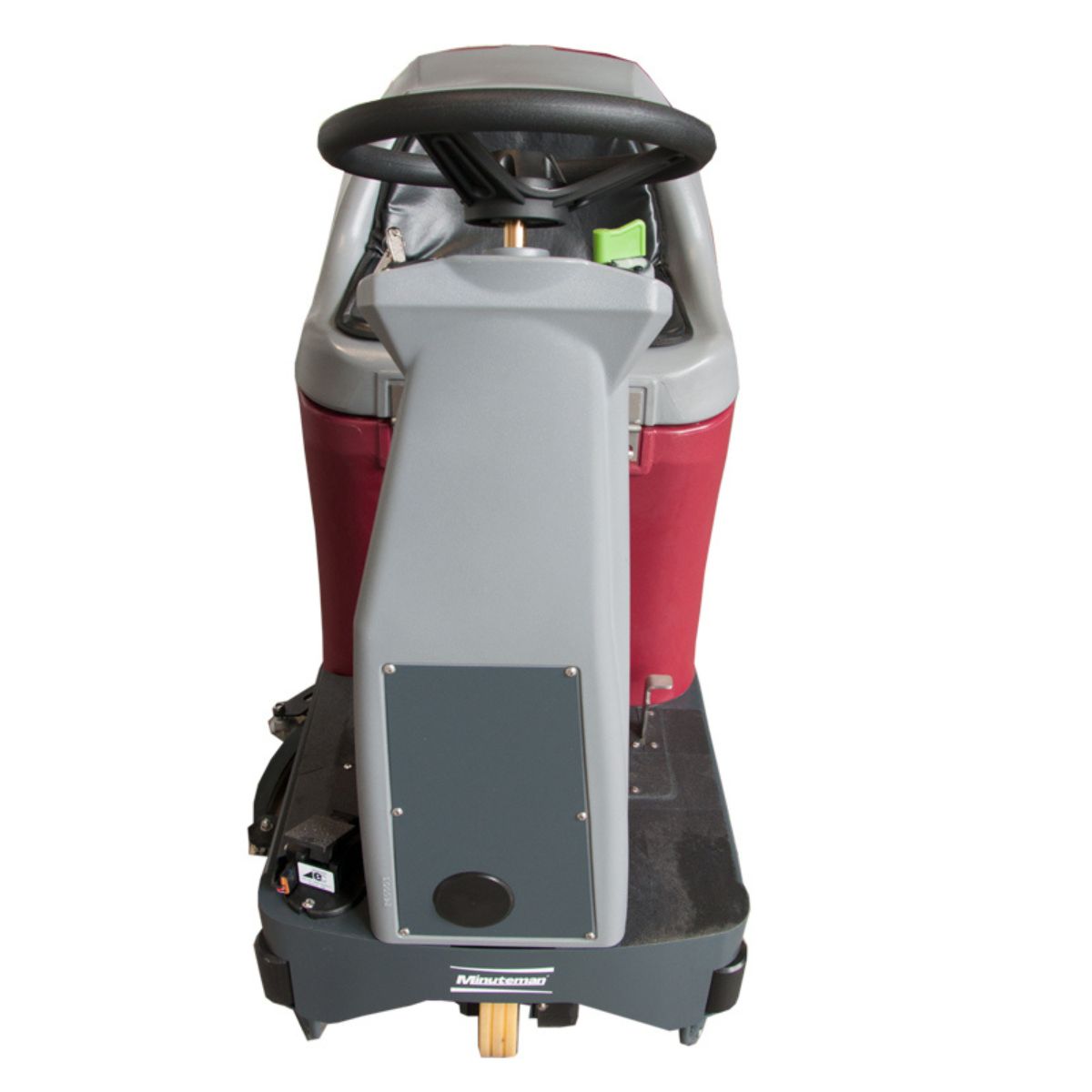

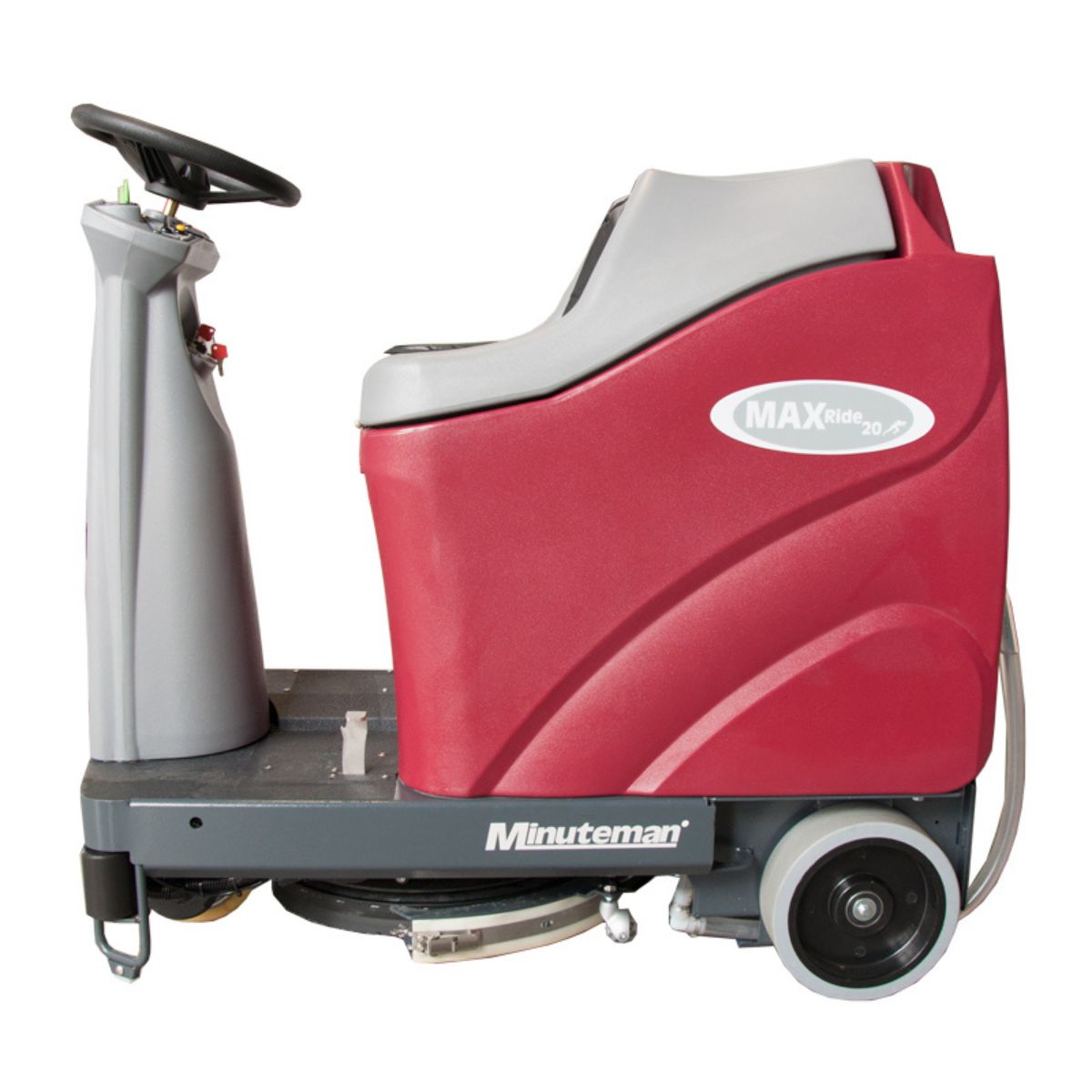

Minuteman Max Ride 20" Auto Scrubber — Compact Ride-On, 20" Disc

The Max Ride 20 is a micro ride-on scrubber built on a rugged e-coated steel frame with big-machine durability in a compact footprint. It turns 360° on its own axis, auto-loads/auto-unloads the brush or pad driver, and carries 18-gallon solution and recovery tanks. The squeegee sits under the unit and tracks the brush path for best-in-class water pickup. An on-board charger keeps charging simple.

Why facilities choose the Max Ride 20

• Exceptional maneuverability in tight aisles; true 360° turn capability.

• Fast, simple maintenance with tool-free squeegee removal and easy battery access.

• Large tanks in a compact rider: 18 gal / 18 gal solution & recovery.

• Strong pickup: squeegee sits directly behind the brush/pad for complete water recovery.

Package levels

1) Max Ride 20

• Brush speed: 185 RPM

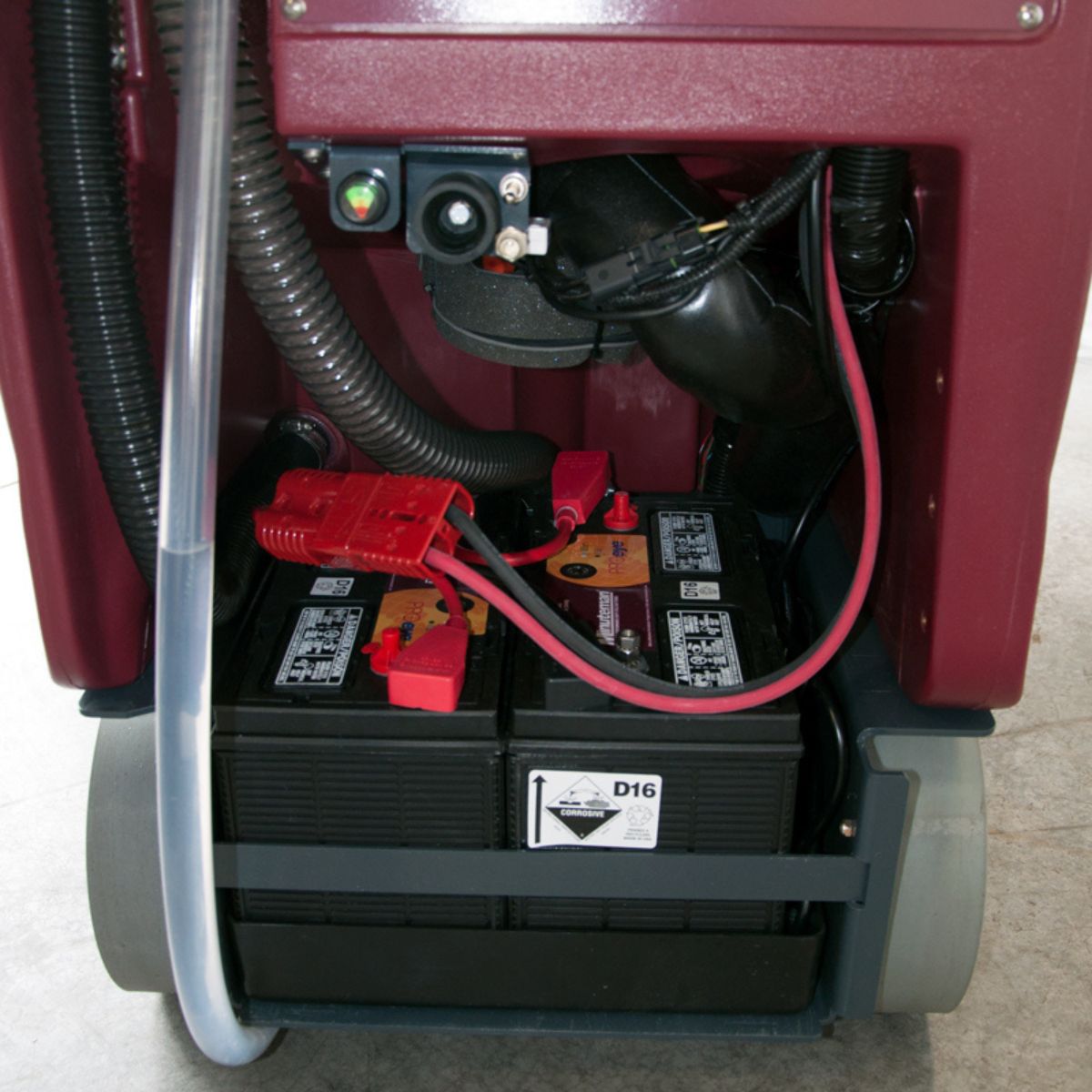

• Runtime: up to 3–3.5 hours on (2) 12V 140Ah batteries

• Productivity: up to 27,200 ft²/hr (theoretical); 22,015 ft²/hr (practical)

• Squeegee width: 25"; Sound: 68 dBA

• Water flow: 0.45 gpm; Max travel speed: 3.1 mph

• Dimensions: 47.5" L × 25.5" W × 45" H


2) Max Ride 20 SPORT (Scrub • Polish • Or Remove Top Two coats)

• Includes SPORT Technology for chemical-free surface prep / top-coat removal in addition to daily scrubbing.

• Variable brush speed: 185–400 RPM (locked or floating pressure)

What is SPORT Technology?
Minuteman’s SPORT stands for Scrub, Polish, Or Remove Top Two coats of finish — enabling chemical-free top-coat removal/restoration using specific pads and settings.

Core specifications

• Cleaning path: 20" disc

• Tanks: 18 gal solution / 18 gal recovery

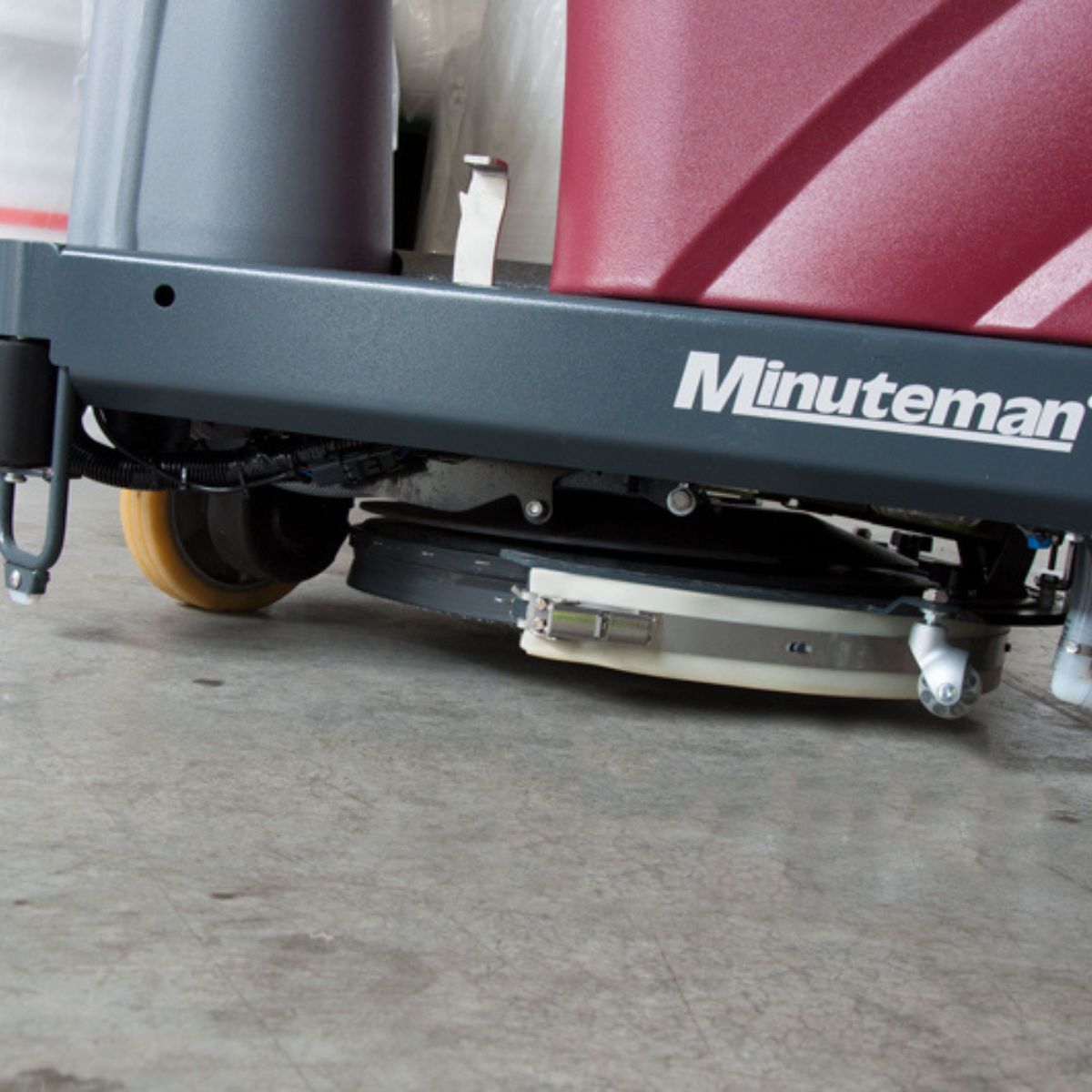

• Squeegee: 25" under-machine, tracks brush path

• Drive system: 24 VDC; on-board charger included

• Max ramp: 6%; Minimum turn-around aisle: 50.5"

• Vac motor: 550 W; Airflow: 69 CFM; Waterlift: 68"

• Machine weight (w/ batteries & full solution): ~691 lb

• IP rating: IPX4
  (All values above from Minuteman Max Ride 20 spec sheet.)

Ideal for

Retail and grocery, education, healthcare, hospitality, warehouses, and any site that needs ride-on productivity in tight spaces without sacrificing tank capacity or pickup performance.

What’s included

• Max Ride 20 rider scrubber (20" disc)

• On-board charger; 24 V battery system

• Auto brush/pad load/unload functionality

• Under-deck parabolic squeegee assembly
  (Exact accessory contents may vary by package.)
